Kraft Bag Automatic Weighing And Packing Machine In In Plastic Rubber Industry With Filling Unit
Introduction
Our new packaging machine unit designed for large bag of granule, powder materials in chemicals, fertilizer, feed, grain, seeds, food, rubber & plastic and other industries which has functions of automatic weighing, bag clipping, filling, bag sending, bag sealing etc. It has functions of automatic weighing, automatic bagging, automatic filling, automatic package delivery and automatic sealing. It can work with various granular and sheet materials and equipment to realize the production of large-scale packaging and heavy-bag packaging.
Technical Parameters
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 10-50KG | 10-50KG |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Bag Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) |
| Weighing Accuracy | 0.2%FS | 0.2%FS |
Packaging Speed | 6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode | Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing |
System equipment meets engineering condition &public use
(1) Electricity:220/380V,50Hz
(2) Power:14kw
(3) Air Supply Pressure:0.5-0.7MPa
(4) Air Consumption:1.8Nm³/min
(5) Temperature:-15℃-45℃
Machine Main components
a. Empty bag storage
b. Empty bag taking unit
c. Bag management unit
d. Bag upper unit
e. Bag sending unit
f. Bag clipping and material filling unit
g. Bag holding unit
h. Bag mouth guiding unit
i. Heat sealing / bag sewing / folding sewing station
j. Stand-up bag conveyor
k. Electrical control cabinet
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell | |
Application Range
Particles, sheet materials (such as polyethylene, polypropylene, polyvinyl chloride, PVC, PVA, etc.). In the process of production, it realizes the full automation of bag supply, bag taking, bag opening, bag bagging, metering, filling, bag unloading, clamping shaping, folding and sealing, etc.
Machine Features
1. The control parts use Siemens PLC and Weinview 10-inch color touch screen, which has advantages of simple operation and stability.
2. The pneumatic part adopts AirTAC magnetic valve, oil-water separator and cylinder.
3. The vacuum system adopts German FESTO magnetic valve, filter, digital vacuum pressure switch.
4. On all actuating mechanism, there is magnet switch or optoelectronic switch as the detection unit, which is safe and reliable.
Packaging and Delivery
1. Packing: Wrapped with film firstly, then packaged with standard wooden cases
2. Delivery: Usually we adopt sea transportation, if there are different requirements, we will make it accordingly
Our Promise
Custom-made machine:
We have Great customized and design ability. Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost, making your packaging system work smoothly.
Installation:
1-We provide videos and instruction manual to show the process of installation.
2-We provide training for installation for free in our factory.
3-We can send technician to buyer's factory to install the machine and provide training service
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer with trade team for international service.
Q: How long is your delivery time?
A: Normally 60 days after confirmed order. 45 days could be available in low season for some items (during May to July), and 85 days during new year and hot season (Jan to March).
Special cases need discuss.
Product Tags:
|
|

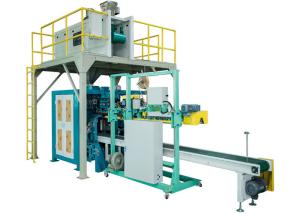

35kg Bag Automatic Weighing And Packing Machine Images
|
