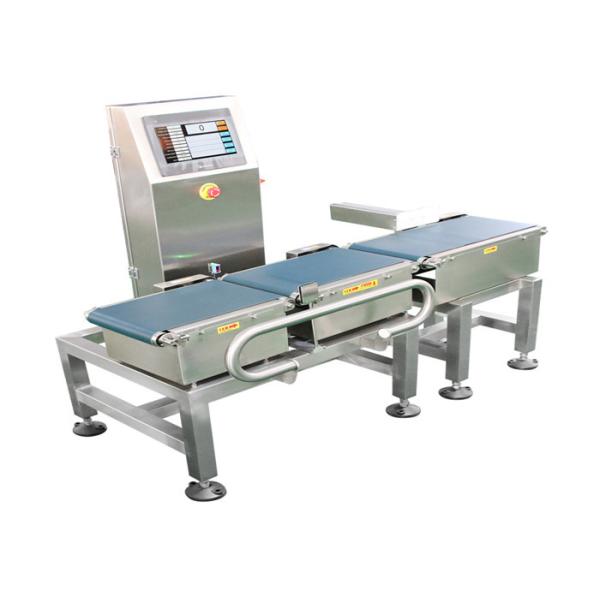

IP 54 Protection Check Weigher Machine In Sugar Industry , Push Reject System
Introduction
SSCW-B Type Checker Weigher- 6 inch LCD controller
Main features
6-inch graphic LCD display with touch keypad
Easy product setting and calibration
Fast product switching
Self-diagnostic function
Comprehensive statistical functions
Multi-level password protection
Flexible alarm output configuration
Machine Features
Report function: built-in report statistics, the report can generate EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than 1 year of statistical data, support production status at any time;
Provide factory parameter setting recovery function, and can store a variety of recipes, easy to replace product specifications;
Interface function: reserved standard interface, easy to manage data, can be connected with PC and other intelligent devices
Technical Parameters
| Model | SCW06A/B/C | SCW20A/B/C | SCW30A/B/C | SCW60A/B/C |
| Scope | 6g-600g | 50g-2000g | 100g-3000g | 100g-6000g |
| Accuracy | ±0.4g | ±0.5g | ±1g | ±4g |
| Max. throughput | 200 ppm | 150 ppm | 120 ppm | 60 ppm |
| Belt Length(mm) | 220,300 | 300,400 | 400,500 | 600,800 |
| Belt Width(mm) | 150,200 | 200,250 | 250,300 | 400,500 |
| Table Height(mm) | 600-1000 | 600-1000 | 600-1000 | 600-1000 |
Machine Parts List
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Belt | Zhenjie | PVC |
| 3 | Bearing block | LK | Cast iron |
| 4 | Outrigger | Square tube 50x50 | Carbon steel spray |
| 5 | Beam frame | Bending plate, thickness 3mm | Stainless steel |
| 6 | Main roller | Eagle, Diameter φ58 | Carbon steel spray anti-rust paint |
| 7 | Driven roller | Eagle, Diameter φ58 | Carbon steel spray anti-rust paint |
| 8 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
| 9 | Touch screen | Saimo | |
| 10 | Sensor | HBM | |
Note:
1 The technical parameter above namely is the result of accuracy by inspecting only the test sample on the belt. The accuracy would be affected according to the detecting speed and product weight.
2 The detecting speed above will be affected according to the product size to be detected
3 Requirements for different sizes by customers can be fulfilled.
Our Advantages
1. The machine operation interface is simple: only need to set the product parameters after receiving the machine, press the start button. No other machine parameters need to be reset.
2. Self-diagnosis function: the machine can detect the fault by itself and prompt.
3. Possess core technology.
4. Delivery time 5-7 working days.
5. Low failure rate.
6. Strong durability.
7. Attached machine installation tools and wearing parts (for example: motor belt)
8. There are many successful cases in the industry: (you can contact our sales staff at any time to request the machine work video)
FAQ
Q: How to select the suitable weight checking machine type for your product:
A: Please contact with our people and tell us information: your product sizes(L*W*H), product weighing range(min and max weight), speed(how many bags per hour), rejector needed or not so that we can select the best suitable check weigher for you.
Q: Are you manufacturer or trader? Where are your factory located?
A: We are manufacturer and we are located in Hefei city, Anhui, China.
Q: What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
A: Sea shipping, air Shipping, and international express. And after confirming your order, we would keep you updated of production details of emails and photos.
Q: How’s the accuracy?
A: The accuracy illustrated in the technical specification is for your reference. But the accuracy is also related to product length and speed. We will confirm it to you for specific requirement.
